The Dillon AP Mechanical Dynamometer exhibits limitless versatility as a tension, traction and weight measuring instrument. Full selection of capacities--
Available in capacities from 500 to 100,000 pounds, 200 to 50,000 kilograms, 2,000 to 500,000 Newtons. Long life--
The core of the device is a steel flexing beam. The enclosure is a heavy aluminum alloy case with baked on protective finish. The dial face is sealed and cushioned with a rubber gasket. Safe for overhead applications--
Most models have a 5:1 ultimate safety factor. Zero control--
Use it like a tare. It can cancel preset load values up to 20% of device capacity. NIST Traceable - The EDxtreme comes with a NIST traceable calibration certificate.
Features
- Accuracy: 0.5% of full scale capactiy for precise data.
- Broadest range of capactities and resolutions are certain to fit your needs
- Wide temperature range for use in nearly any environment (-50 to 140F / -45 to 60C)
- Largest safety factor for overload protection and long life
- No batteries required
- Dial size choice for best in portability or visibility
- Anti-parallax dial and pointer produce accurate readings from any perspective
- Maximum hand retains peak load point and is easily reset
- High strength case resists heavy blows
- Generous shackle openings mate with most hooks an dhardware
- High specification materials on all load components. Heat treated to tight tolerances

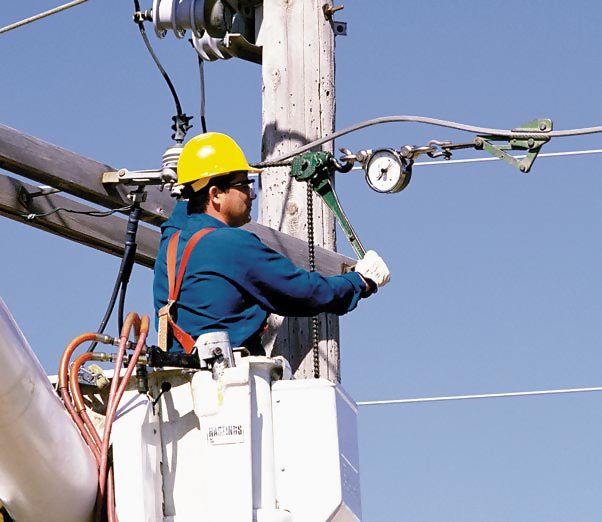

- Offset load beam eases tension measurement
- NIST Traceable Certificate Included
Force Ranges
| Model | Capacity | Resolution | Dial Size | | AP5-500LB | 500 lbs | 5 | 5" (125 mm) | | AP5-1000LB | 1,000 lbs | 10 | 5" (125 mm) | | AP5-2000LB | 2,000 lbs | 20 | 5" (125 mm) | | AP5-4000LB | 4,000 lbs | 25 | 5" (125 mm) | | AP5-5000LB | 5,000 lbs | 50 | 5" (125 mm) | | AP5-6000LB | 6,000 lbs | 50 | 5" (125 mm) | | AP5-8000LB | 8,000 lbs | 50 | 5" (125 mm) | | AP5-10000LB | 10,000 lbs | 100 | 5" (125 mm) | | AP5-15000LB | 15,000 lbs | 100 | 5" (125 mm) | | AP5-20000LB | 20,000 lbs | 200 | 5" (125 mm) | | AP10-500LB | 500 lbs | 2 | 10" (250 mm) | | AP10-1000LB | 1,000 lbs | 5 | 10" (250 mm) | | AP10-2000LB | 2,000 lbs | 10 | 10" (250 mm) | | AP10-4000LB | 4,000 lbs | 20 | 10" (250 mm) | | AP10-5000LB | 5,000 lbs | 20 | 10" (250 mm) | | AP10-6000LB | 6,000 lbs | 25 | 10" (250 mm) | | AP10-8000LB | 8,000 lbs | 50 | 10" (250 mm) | | AP10-10000LB | 10,000 lbs | 50 | 10" (250 mm) | | AP10-15000LB | 15,000 lbs | 100 | 10" (250 mm) | | AP10-20000LB | 20,000 lbs | 100 | 10" (250 mm) | | AP10-30000LB | 30,000 lbs | 200 | 10" (250 mm) | | AP10-40000LB | 40,000 lbs | 200 | 10" (250 mm) | | AP10-50000LB | 50,000 lbs | 200 | 10" (250 mm) | | AP5-200KG | 200 kg | 2 | 125 mm (5") | | AP5-500KG | 500 kg | 5 | 125 mm (5") | | AP5-1000KG | 1,000 kg | 10 | 125 mm (5") | | AP5-2000KG | 2,000 kg | 20 | 125 mm (5") | | AP5-4000KG | 4,000 kg | 25 | 125 mm (5") | | AP5-5000KG | 5,000 kg | 50 | 125 mm (5") | | AP5-10000KG | 10,000 kg | 100 | 125 mm (5") | | AP10-200KG | 200 kg | 1 | 250 mm (10") | | AP10-500KG | 500 kg | 2 | 250 mm (10") | | AP10-1000KG | 1,000 kg | 5 | 250 mm (10") | | AP10-2000KG | 2,000 kg | 10 | 250 mm (10") | | AP10-4000KG | 4,000 kg | 20 | 250 mm (10") | | AP10-5000KG | 5,000 kg | 50 | 250 mm (10") | | AP10-10000KG | 10,000 kg | 50 | 250 mm (10") | | AP10-15000KG | 15,000 kg | 100 | 250 mm (10") | | AP10-20000KG | 20,000 kg | 100 | 250 mm (10") |
Options
Klaxon signal alarm
Mounted on rear of the Dynamometer and sounds an alarm at a preset load point. For capacities through 20,000 pound (10,000 kg) only
Zero positioning
The standard zero position is 9 o'clock for both the 5" and 10" dial sizes. Capacities up to 20,000 lb can be supplied with the zero at 12, 3 or 6. Photo shows a nonstandard position of 12 o'clock.
Oversized shackle and pin assembly. Available with all AP5 models and up to AP10-20000LB/AP10-10000KG models only.
Addition to standard shackle & pin (sold as an accessory at time of order or after sale) Steel storage case For 10" (250 mm) diameter model AP10-20000LB/AP10-10000KG and lower Hook Accessories | Part # | Hook Rating | For Dynamometer Ratings | | AP-H3 | 3-ton | 500-6,000 lb / 200-2,000 kg | | AP-H5 | 5-ton | 8,000-10,000 lb / 4,000-5,000 kg | | AP-H10 | 10-ton | 15,000-20,000 lb / 10,000 kg |

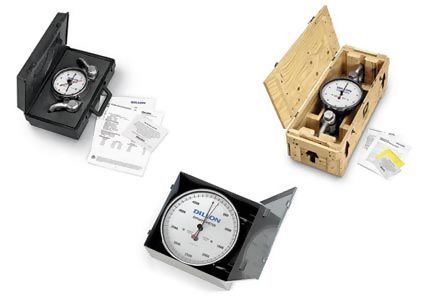

Complete Kit
5" (125 mm) diameter AP dynamometer includes a rugged ABS plastic carry case with die-cut foam inserts. Capacities of 30,000 lb (15,000 kg) and above are shipped in a heavy-duty reinforced plywood crate. An optional steel carry case is available for 10" (250 mm) diameter dynamometers up to 20,000 lb (10,000 kg) capacity.
