Straightpoint Towcell-Bluetooth Load Cell, 25 kN, 2.8 Tonnes - 2789271



Price: $ 4,786.00

Straightpoint Towcell-Bluetooth Towbar Load Cell, Tow Hitch Dynamometer
Wireless Load Cell for Monitoring Towed Loads up to 25 kN / 2.8 tonnes
Bluetooth Output with 100m or 328ft Wireless Range
5:1 Safety Factor

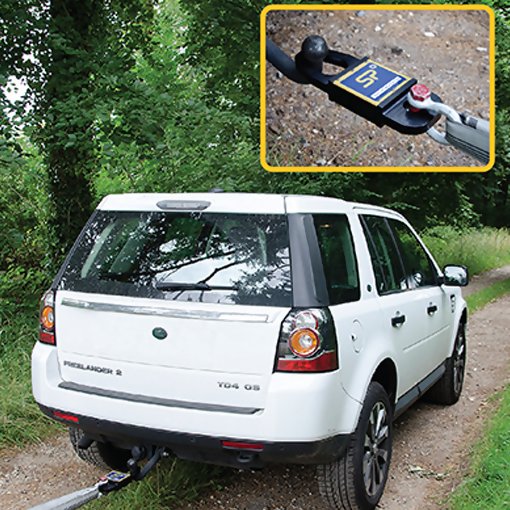

The Straightpoint Towcell wireless load cell is designed to monitor a vehicle's towed load up to 25 kN / 2.8 tonnes. Typical applications include emergency services, salvage, off-road and much more. The Towcell allows for increased safety and the avoidance of costly overloads by providing real-time monitoring of tensile towing forces during recovery, clearance and salvage efforts. The Straightpoint Towcell is rugged, lightweight, compact and can be installed, with ease, onto any tow bar, whether its a standard 52mm or 2 ball or pin assembly and is ready to use in seconds.

Modeled after Straightpoints best-selling Radiolink plus, the Towcell is constructed of high-quality aircraft-grade aluminum, featuring an advanced internal design structure providing the product with an unrivaled strength to weight ratio, and allowing for the use of a separate internal sealed enclosure. This internal sealed enclosure provides the internal electronic components with IP67/NEMA6 waterproof environmental protection even with the battery cover plate missing.

Easily sourced AA alkaline batteries offer a massive battery life of 500 hours, the Towcell utilizes an unbreakable internal antenna. Towcell loads are displayed via Bluetooth SW-HHP App for Android and iOS devices.


line
Kit Contents
line

  • Straightpoint Towcell-Bluetooth Towbar Load Cell
  • Proof test certificate
  • Operator Manual
  • Carry/Storage Case
  • AA Alkaline Batteries
  • RFID Tagged


line

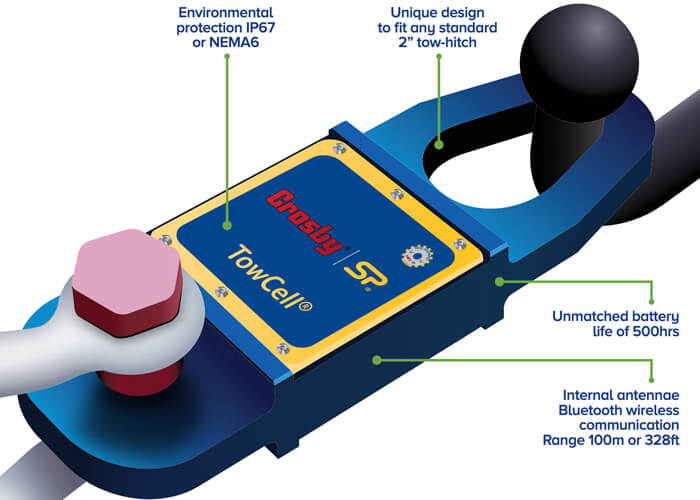

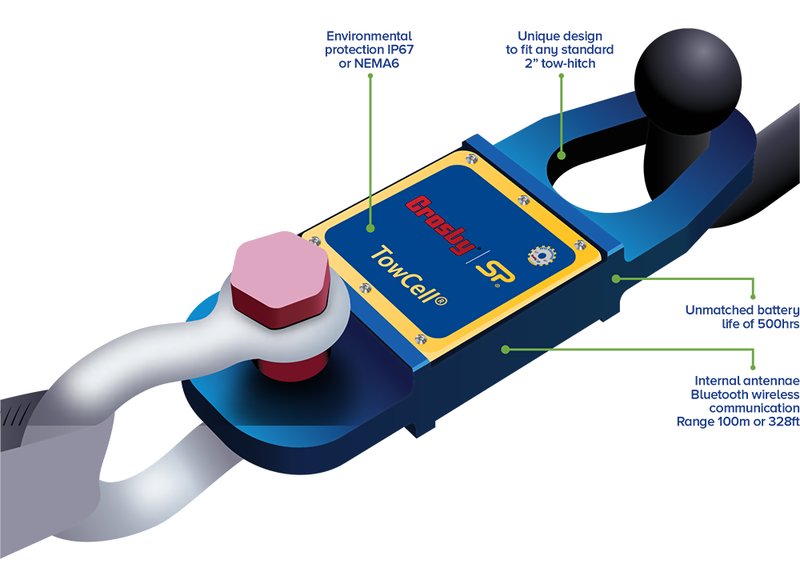

Features
line

  • Unique design to fit any standard 2 tow-hitch
  • Lightweight Internal antennae
  • Compact size
  • Bluetooth wireless communication
  • Range 100m or 328ft
  • Waterproof to IP67/NEMA6
  • Unmatched battery life of 500hrs
  • Vehicle load monitoring
  • Emergency services
  • Rescue & Salvage
  • 4 x 4 Events
  • Design validated by F.E.A.
  • Warranty 1-Year (FREE Extension to 2-Years with Product Registration)


line
Specifications
line

Capacity25 kN / 2.8 Tonnes
Resolution0.01 kN / 0.001 Tonnes
Accuracy+/- 0.1% FS
Weight1.4 Kg / 3lbs
Safety Factor5:1
Battery Type4x AA
Battery Life500 Hours
Operating Temp-10c to +50c / 14 to 122F
Wireless Range100 metres / 328 feet
Data Rate50Hz

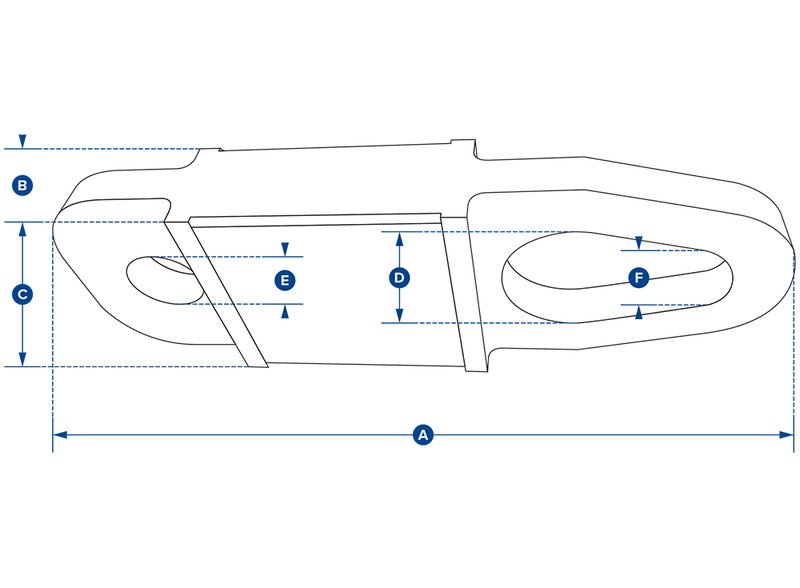

DimensionsRefer to PDF Brochure


line
Downloads
line

Straightpoint Towbar Load Cell, Tow Hitch Dynamometer - Data Sheet
Straightpoint Towbar Load Cell, Tow Hitch Dynamometer - Instruction Manual
