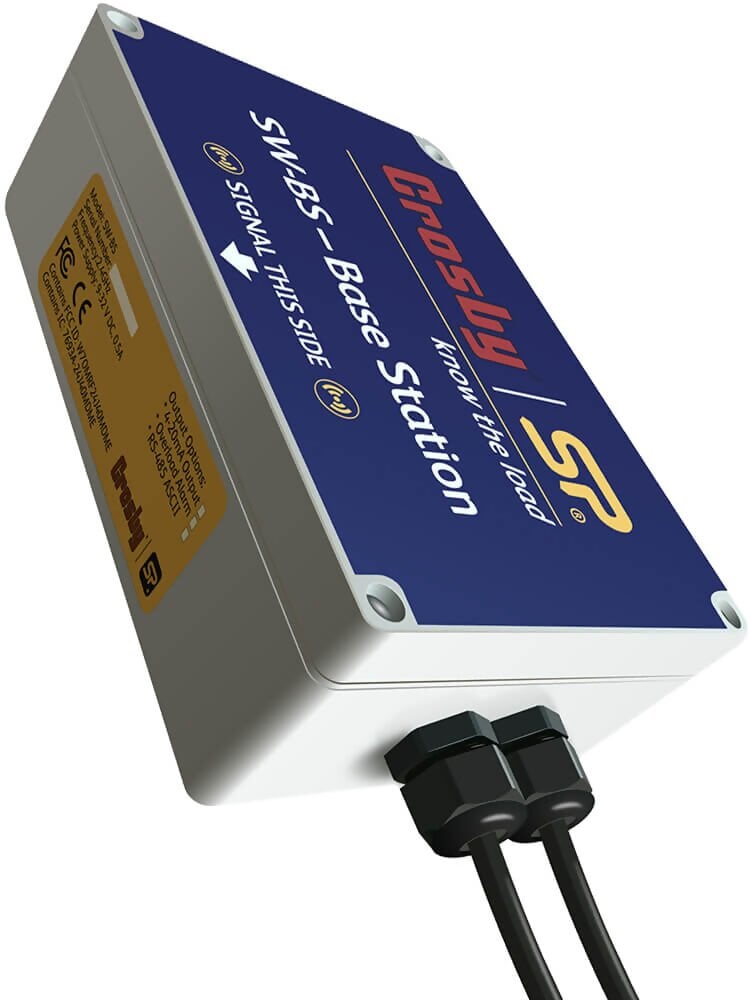

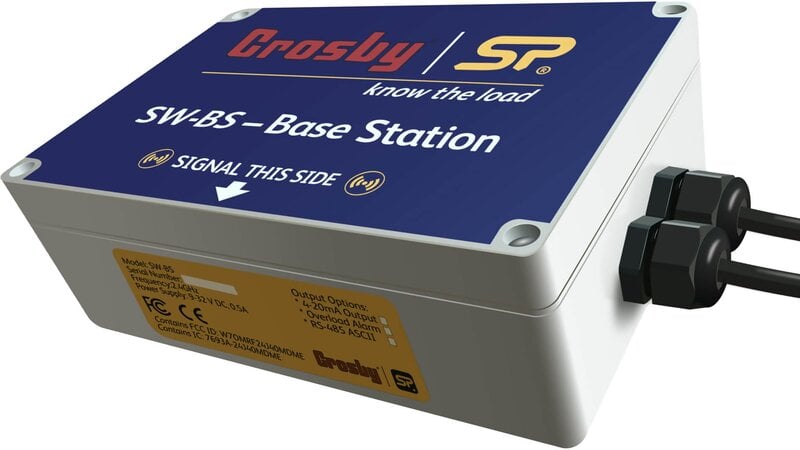

The StraightPoint Crosby SW-BS Wireless Base Station Module is powered via a 9-32V DC external power source and easily pairs to any Straightpoint wireless device e.g. load cell, accessories, and software solutions within range, providing analog & digital outputs.
The SW-BS, Straightpoint base station, provides a congurable analog or digital output for any single or multiple (up to a maximum of four)Straightpoint wireless load cells.
The StraightPoint Crosby SW-BS Wireless Base Station - 2789314 is ideal for integration with PLC, SCADA, DAQ, or another compatible third-party system. The device can be congured to provide any of the following outputs as per conguration:
- 4-20mA
- Relay setpoint
- RS485 ASCII
- Optional CANbus 2.0A & 2.0B
The load data from the wireless loadcell can then be seamlessly fed into an external controller installed on a crane, vehicle or other machinery requiring feedback for close loop or real time control and monitoring.
